    Miracast octocopter video data hdmi wireless transmitter TDD - COFDM 2W

    Ask Lasest Price
    Brand Name : IFLY
    Model Number : FIM-2430
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000sets/month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

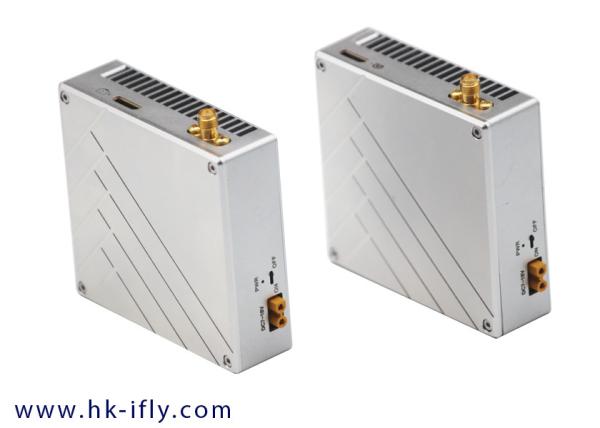

    Miracast octocopter video data hdmi wireless transmitter TDD - COFDM 2W

    Miracast octocopter video data hdmi wireless transmitter TDD - COFDM 2W


    FIM-2430 offers a FHD Video and bi-directional Data Link specifically designed for commercial and industrial drones, enabling operation of fleet management and autonomous UAV systems. By employing leading wireless technologies, the FIM-2430 delivers long range and Non-Line of Sight (N-LOS) communication that supports multiple transmission modes.


    As a mini HD Video and Duplex data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground (30km) and low delay(30ms) transmission.


    Main features:

    • Working Temperature: -40℃~+85℃
    • Support 2-way data transmission
    • TTL/MAVLINK/Telemetry/TCP/IP/UDP
    • Video Input: HDMI and IP
    • Support Video and Duplex Data
    • Support PIXHAWK Fly Controller
    • 100Mbps Ethernet for option
    • Software for video locally save
    • Video output to PC and Monitor simultaneously
    • Double Serial ports for bi-directional data
    • Baud rate: 115200bps(adjustable)

    wireless hd transmitter, wireless hdmi video transmitter


    Frequency2.4GHz(2.402-2.482GHz)
    Error DetectionLDPC FEC/Video H.264/265 Super Error Correction
    RF Transmitted Power33dbm
    Power ConsumptionTX: 19Watts/RX: 8Watts

    Distance

    25-35km

    (Notes:True distance is related to the environment)


    Bandwidth

    4/8MHz

    Default:4Mhz

    Adjustable:8Mhz(Bandwidth can be modified by software)


    Antenna

    1T: Omnidirectional Antennas

    1R: Omnidirectional Antennas or Panel Antenna

    Video Input/outputOn board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX
    Video Color SpaceDefault 4:2:0
    Video CompressedAVC adds H.265 feature TS stream
    EncryptionAES128
    Transmission Modepoint to point
    Start-up time25s
    Re-connection timeLess than 1s after signal has been recovered
    End to End Latency50-70ms for1080P60/720P60 Encoding and decoding

    Transmission Rate

    3/6Mbps

    Best video rate:2.5Mbps

    Receive Sensitivity

    3Mbps total rate 2.5Mbps data rate: -98dbm@4Mhz

    6Mbps total rate 5Mbps data rate: -95dbm@8Mhz

    Two-way functionSupport video and duplex data simultaneously
    DataSupport TTL/MAVLINK/Telemetry

    Interface

    1080P/60 HDMI Mini ×1
    Antenna ×1
    S1 TTL bidirectional serial port ×1

    RS 232 bidirectional serial port ×1

    (RS 232 and S1 TTL serial port cannot be used at same time)

    Ethernet to RJ45 on Windows ×1

    Note:Ethernet to RJ45 on Windows means RJ-45 socket on PC with Windows.

    Power Input ×1
    Indicator LightHDMI input/output Status(WL Light)
