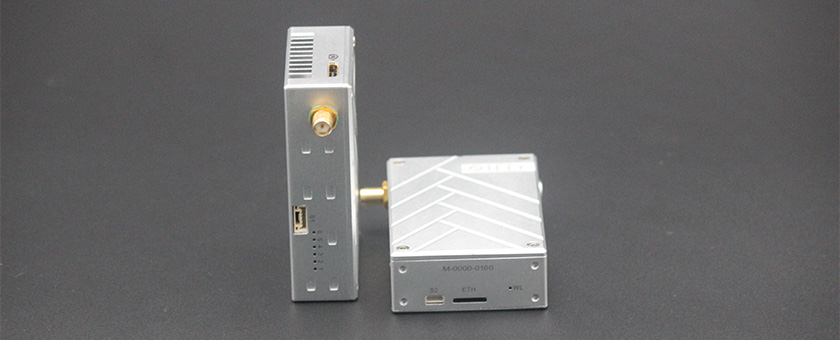

-100dbm@4Mhz receiving sensitivity H.265 Video Compression Drone Video transmitter for Fixed Wing drone
Introduction
IFLY Digital Data Link radios provide secure and reliable point-to-point applications where high bandwidth links are required. Our TDD-COFDM radios provide unparalleled performance for simultaneous video and telemetry requirements.
Our miniature robust designs can provide high bandwidth Ethernet and Serial data for size and weight applications such as remote video, remote telemetry, robotics, and other wireless control systems.
Key Features
| 1 | Up to 3-5 Mbps Throughput(for 10km distance) |
| 2 | Double IP video stream input |
| 3 | Adjustable Output Power (up to 1W) |
| 4 | Extremely Small Footprint |
| 5 | Very Lightweight |
| 6 | Double Antenna Design |
| 7 | Multicast Support |
| 8 | Long Range(10-14km) |
| 9 | Low Power Consumption |
| 10 | Simultaneous IP & Serial Data |
| 11 | Dual Serial Ports (RS232/MAVLINK/ TELEMETRY/SBUS) |
| 12 | Compatible with Pixhawk |
| 13 | Ethernet Interface |
| 14 | Extended Temp (-40C to +85C) |
| 15 | 128-bit AES Encryption |
| 16 | Full VLAN Support |
| 17 | Network Management with SNMP |
| 18 | Configurable via TDD software |
| 19 | Local/Remote firmware upgrades |
Specification
| requency | 2.3Ghz/2.4GHZ(2.402-2.478GHz)/2.5Ghz for your option |
| Wireless Fault-tolerant | LDPC FEC |
| RF Transmitted Power | 1Watt |
| Power Consumption | TX: 7Watts |
| RX: 5Watts | |
| Frequency Bandwidth | 4/8MHz |
| Latency | ≤15-30ms |
| Receive Sensitivity | -100dbm ~ -90dbm |
| Video Color Space | Default 4:2:0 |
| Antenna | 1T1R |
| Video Input/output Interface | HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX |
| Video Compressed Format | H.264+H.265 |
| Bitrate | Software adjustment |
| Encryption | AES 128 |
| Transmission Distance | Air to ground 10-15km |
| Start-up time | < 30s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support SBUS/MAVLINK/Telemetry/TTL/RS232 |
| Power supply | DC 7- 18V |
| Interface | 1080P/60 HDMI Mini RX x1 |
| 100Mbps Ethernet to USB / RJ45 on Windows × 1 | |
| S1 TTL bidirectional serial port x1 | |
| Power Input x1 | |
| Indicator Light | HDMI input/output Status |
| Transmitting and receiving | |
| Video board working Status | |
| Power | |
| HDMI | HDMI mini/Flexible Flat Cable(FFC) |
| Temperature Range | Operating temperature:-40°C ~+ 85°C |
| Storage temperature:-55°C ~+ 100°C | |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
| Dimension | 72×47×19mm |
| Weight | Tx: 94g/Rx: 94g |
|
|
