30Mbps Throughtput Ethernet signal transmission Links for Drone/UAV/FPV/UAVs

Introduction

FD-6100 Mobile Mesh Radio is ideal for use as the primary ground control station, or as a mesh node for unmanned vehicle applications. It is an SDR complaint broadband mesh radio, which adopts COFDM modulation scheme and MIMO OFDM technology, high efficiency channel code and MESH networking protocol. FD-6100 offers strong NLOS performance with high throughput. It is an ideal solution to establish a self-forming, self-healing network between different points such as soldiers, vehicles, Robots, UGV and UAVs. This centerless network is capable of transporting heavy data in harsh environment. The small size coupled with low power consumption makes the equipment easy to carry.

Main Features

FD-6100 Meshed radio solutions can provide enhanced connectivity for all unmanned systems, for example: Unmanned Ground Vehicles (UGVs) on land, Unmanned Surface Vessels (USVs) at sea and Drones, UAVs and UAS in the air, as well as Ground Control Stations (GCS) and handheld operating devices.

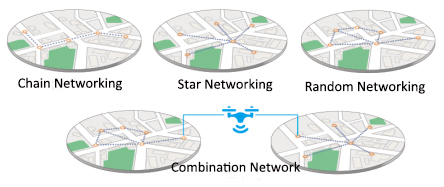

Multiple Mobile Mesh Radios can be used to create self-forming ad hoc mesh networks, which improve network robustness and extend operating range.

Multi-carrier COFDM technology

• Point to Point peak throughput upto 60Mbps(Peak Value)
• Air to ground range(On Drone) ≥10km
• NLOS Range: it can transmit video from -1Floor to 34Floor in a building
• Ground to ground NLOS: 1-3km

Multi-hop Ad hoc Network (MESH) Technology

• Automatic networking, automatic calculation of intranet routes without manual intervention
• Supports 32-node ad hoc networks with automatic multi-hop transmission

Easy to Operation

• Plug to play
• Support Configuration by Mobile phone and Web

Customized Features

• TX Power 200mw adjustable
• 200Mhz-2.4Ghz on request
• Bandwidth 5/10/20Mhz adjustable

Technical Features

About us:

IFLY Bi-Directional Data Links are wireless communication units specifically designed for long range links for various types of unmanned aerial and ground vehicles. It support 5km/10km/20-30km/30-50km/70-120km range. It mostly application is for mapping, emergency, detect and Sea Rescue.

By employing leading wireless technologies, the IFLY family of products delivers long-range communication that supports Bi-directional Data and enables real-time full HD Video Streaming.

IFLY stands out from other UAV communication systems in that it combines control, telemetry and payload into one RF channel and in a compact and lightweight solution.

With AES encryption mechanism, built-in flexibility to optimize to customer needs and robust link that operates in long-ranges and overcomes dead spots, IFLY UAV data link provides safe link for drone communication in government, army and commercial applications.

Why IFLY?

IFLY provides H.264/H.265 ,CODEC RTL IP Cores,
CODEC FPGA Boards, and CODEC FPGA Modules for hardware video systems.

IFLY maintains technique co-operation relationship with some world well-known enterprises, such as Sony ,Panasonnic and Huawei.
IFLY UAV radio links provides comprehensive progress in the video transmission application technology, develop high-standard product solutions and perfect customer service system.

1. Bi-directional and configurable software defined radio (SDR) data link

2. 5km-120km Line-of-Sight (LOS) range

3. ISM Frequency 1.2G/1.3G.1.4G/2.3G/2.4G/2.5Ghz for your option

4. Encrypted & Secured

5. Control, monitoring, telemetry and real-time Full HD rvideo

6. Compatible with Pixhawk fly controller

7. Compact & Lightweight Solution

8. Support Video Input HDMI and IP

9. Latency 15-30ms
