| Brand Name : | IFLY |
| Model Number : | FIM-2430 |
| Certification : | CE, FCC |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 200sets/month |
| Delivery Time : | 5-8working days |
30-50km UAV military surveillance Drone Video Transmitter/full duplex digital radio links
Description
FIM-2430 is IFLY ultra long range UAV video data link, which have
UHF and 2.4GHz two bands to meet the market different demands.
FIM-2430 have HDMI ethernet and serial port to support two way
video data transmission. Transmission range can up to 30km,Which is
the best choice for FHD ultra long range UAV video data
transmission.
Features:
Applications:
Our main products are COFDM, TDD and analog wireless video
transmitter & receiver, which are widely used in city security,
marine aquaculture surveillance, sea boat mobile surveillance, UAV,
robots surveillance, automobile surveillance, etc.
Specification
| Frequency | 2.4GHz(2.402-2.482GHz) |
| Error Detection | LDPC FEC/Video H.264/265 Super Error Correction |
| RF Transmitted Power | 2Watts |
| Power Consumption | TX: 17Watts/RX: 6Watts |
| Distance | 30km |
| Bandwidth | 4/8MHz |
| Video Input/output Interface | On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX |
| Bit rate and channel adjustment mode | DIP or SPI2MCU |
| Antenna | 1T1R/ Tx: 5db(Omni Antenna) /Rx: 14dbi 90°Directional Antenna |
| Video Color Space | Default 4:2:0 |
| Video Compressed Format | AVC adds H.265 feature TS stream |
| Bit rate | Software adjustment |
| Encryption | AES128 |
| Transmission Mode | point to point |
| Start-up time | 25s |
| Latency | 50ms |
| Transmission Rate | 3-5Mbps |
| Receive Sensitivity | -100dbm@4Mhz -95dbm@8Mhz |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support TTL/MAVLINK/Telemetry |
Interface (same interface on TX & RX) | 1. 1080P 60 HDMI Mini RX x1 |
| 2. 100Mbps Ethernet to USB / RJ45 on Windows x1 | |
| 3. S1 TTL bidirectional serial port x1 | |
| 4. S2 TTL bidirectional serial port x1 | |
| 5. Power Input (DC7-18V) x1 | |
| Indicator Light | HDMI input/output indicator light |
| Transmitting and receiving indicator light | |
| Video board indicator light | |
| Power light | |
| HDMI | HDMI mini/Flexible Flat Cable(FFC) |
| Appearance Design | CNC technology/double aluminum alloy shell with waterproof design |
| Power supply | DC 7- 18V (DC 12V advised) |
| Temperature Range | Operating temperature: -40°C ~+85°C Storage temperature: -55°C ~ +100°C |
| Dimension | Tx: 74x71x23mm/ Rx: 74×71×23mm |
| Weight | Tx: 148g, Rx: 148g |

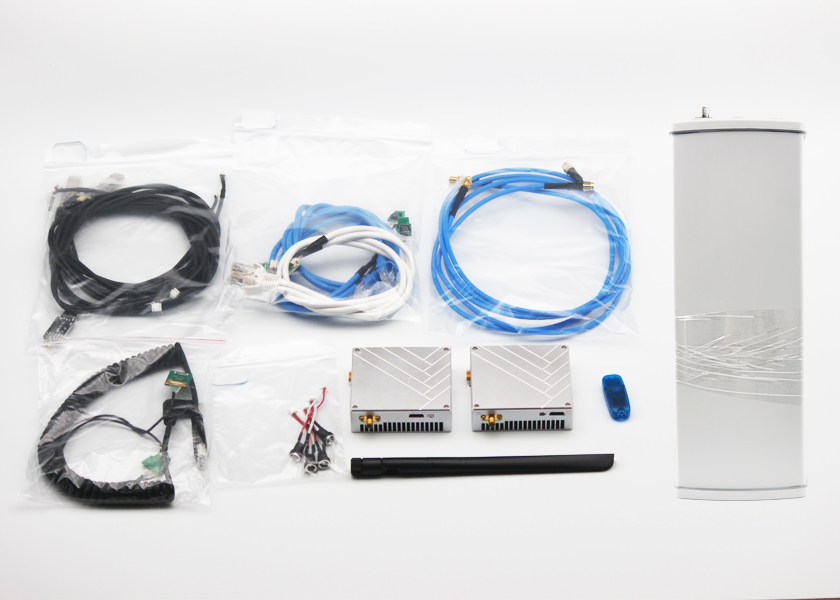

Package List
| Item | Qty |
| Tx | 1 |
| Rx | 1 |
| Tx Antenna | 1 |
| Rx Antenna | 1 |
| Antenna Cable | 3 |
| Ethernet Cable | 3 |
| TTL to USB Cable | 4 |
| TPlayer Software | 1 |
| HDMI Cable | 2 |
| Power Cable | 4 |
| Package Box | 1 |
|
|
